首頁 > 產(chǎn)品?>?ESS FUSE

Class of Operation: aR

Rating:

Amps: 100~400A

Volts: 1250Vac/1000Vdc

Interrupting Rating: 100kA@1250Vac; 50kA@1000Vdc

Standards/Approvals for Reference:

2Designed to GB13539 / IEC60269; 2REACH declaration available upon request; 2CE; 2RoHS compliant.

Description: A range of square body fuses specifically

designed for semiconductor protection

Cross-section: 43x43mm(size 1*)

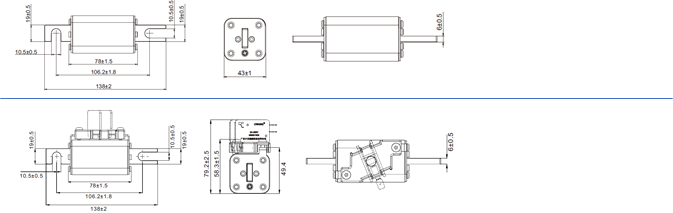

Demensions

Catalogue Numbers

Items	Catalogue Numbers		Electrical Characteristics				Bolt Size	Installation torque (N.m)
	Without Indicator holder	With Indicator holder	Rated Current RMS-Amps (A)	I2t (A2Sec)		Watts Loss
	Without Indicator holder	With Indicator holder	Rated Current RMS-Amps (A)	Pre-arc	Clearing at 1000V	Watts Loss
1	*ESH3066	ESH3055	100	1311	6160	33	M10	24±3.0
2	*ESH3067	ESH3056	125	2048	9830	37	M10	24±3.0
3	*ESH3068	ESH3057	160	3872	18973	42	M10	24±3.0
4	*ESH3069	ESH3058	200	6272	31360	46	M10	24±3.0
5	*ESH3070	ESH3059	250	10368	52877	53	M10	24±3.0
6	*ESH3071	ESH3060	315	18432	95846	60	M10	24±3.0
7	*ESH3072	ESH3062	350	23328	123638	65	M10	24±3.0
8	ESH3073	ESH3061	400	32768	176947	71	M10	24±3.0

規(guī)格書請咨詢客服，電話：0769-2286 2999, 郵箱：info@chnbel.com
