首頁 > 產(chǎn)品?>?ESS FUSE

Class of Operation: aR

Rating:

Amps: 1500~3000A

Volts: 1500Vdc

Interrupting Rating: 250kA@1500Vdc

Standards/Approvals for Reference:

2IEC 60269/GB 13539 2CE, TUV 2RoHS compliant

Description: A range of square body high speed fuse link for semiconductor protection.

Cross-section: 160x160mm

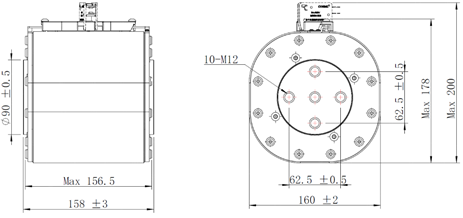

Dimensions(mm)

Catalogue Numbers

Catalogue Numbers	Electrical Characteristics				Bolt Size	Installation torque （N.m）
	Rated Current (A)	I2t (A2Sec)		Watts Loss
	Rated Current (A)	Pre-arc	Clearing at 1500V	Watts Loss
*ESH9012	1500	5024882	9044787	300	M12	42±4.0
*ESH9013	1600	5263561	9474409	320	M12	42±4.0
*ESH9014	1700	5858984	10546171	340	M12	42±4.0
*ESH9015	1800	6922240	12460032	355	M12	42±4.0
*ESH9016	2000	8074101	14533381	370	M12	42±4.0
*ESH9017	2200	10303062	18545512	390	M12	42±4.0
*ESH9018	2500	12803375	23046075	420	M12	42±4.0
*ESH9019	2800	17720934	31897682	450	M12	42±4.0
*ESH9020	3000	22300000	40800000	580	M12	42±4.0

規(guī)格書請(qǐng)咨詢客服，電話：0769-2286 2999, 郵箱：info@chnbel.com
