Class of Operation: aR
Rating:
Amps: 100-630A
Volts: 1500Vdc
Interrupting Rating: 250kA@1500Vdc
Standards/Approvals for Reference:
2Refer to UL248/IEC60269
2UL 、TUV 、CCC 、CE 、UK
2RoHS compliant
Description: It is used for short circuit protection of energy storage device, UPS center, charging system, inverter, charging pile. This series of fuses are cured by the world’s most advanced curing technology, which effectively improves the vibration resistance and high current breaking ability.
Cross-section: 59x59mm

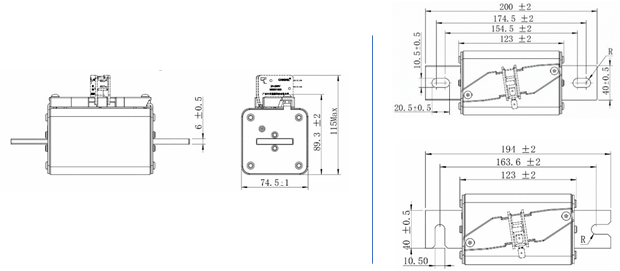

Dimensions(mm)
Catalogue Numbers
| Items | Catalogue Numbers | Electrical Characteristics | Use bolts | Installation torque （N.m） | |||
| Rated Current RMS-Amps(A) | I2t (A2Sec) | 1.0In Watts Loss | |||||
| Pre-arc | Clearing | ||||||
| 1 | *ESH5574 | 100 | 3110 | 12131 | 32 | M8 | 12.0±1.0 |
| 2 | *ESH5575 | 125 | 4234 | 16511 | 40 | M8 | 12.0±1.0 |
| 3 | *ESH5576 | 160 | 6998 | 27294 | 52 | M8 | 12.0±1.0 |
| 4 | *ESH5577 | 200 | 12442 | 48522 | 65 | M8 | 12.0±1.0 |
| 5 | *ESH5578 | 250 | 22118 | 86262 | 80 | M8 | 12.0±1.0 |
| 6 | *ESH5579 | 300 | 34560 | 134784 | 96 | M8 | 12.0±1.0 |
| 7 | ESH5580 | 315 | 41818 | 163089 | 100 | M8 | 12.0±1.0 |
| 8 | *ESH5581 | 350 | 58406 | 227785 | 112 | M8 | 12.0±1.0 |
| 9 | *ESH5582 | 400 | 88474 | 345047 | 128 | M8 | 12.0±1.0 |
| 10 | *ESH5583 | 420 | 111974 | 436700 | 138 | M8 | 12.0±1.0 |
| 11 | *ESH5584 | 450 | 138240 | 539136 | 149 | M8 | 12.0±1.0 |
| 12 | ESH5585 | 500 | 182822 | 713007 | 165 | M8 | 12.0±1.0 |
| 13 | *ESH5586 | 550 | 233626 | 911140 | 181 | M8 | 12.0±1.0 |
| 14 | ESH5587 | 630 | 313000 | 1230000 | 208 | M8 | 12.0±1.0 |
