Description
The 1206 Series are the fuses set the industry standard for performance, reliability and quality. The solder-free design provides excellent on-off and temperature cycling characteristics during use and also makes our SMD fuses more heat and shock tolerant than typical subminiature fuses.
Catalog Symbol | Size | Rated Voltage(V) | Ampere Range | Agency | Dimensions | Material | Class of operation | |
AC | DC | |||||||
12.000 | 1206 | / | 72/63/32 | 1A~30A | JDYX2.E365879 | 3.2*1.6*0.65mm | Body: Ceramic Terminal: Silver over-plated with tin | FAST ACTING |
12.100 | 1206 | / | 72/63/32 | 250mA~30A | JDYX2.E365879 | 3.2*1.6*0.65mm | Body: Ceramic Terminal: Silver over-plated with tin | SLOW BLOW |
Applications
Secondary circuit protection; Laptop, notebook, netbook; Flat panel displays; High-definition television (HDTV); LCD/LED backlighting; Computers and peripherals; Automotive; Central body control module; Heating ventilation and air conditioning; Doors, window lift and seat control; Digital instrument cluster; In-vehicle infotainment and navigation; Electric pumps, motor control and powertrain control; Module(PCU)/Engine; Gaming console systems; Handheld/portable equipment; Mobile device charges.

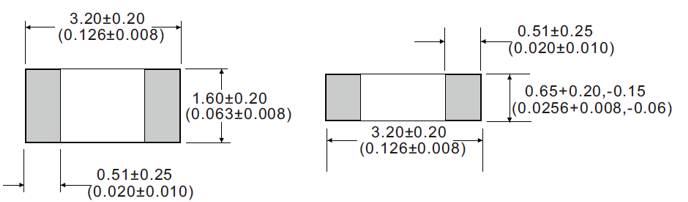

Dimensions(mm)
